Certified by the Passive House Institute in Darmstadt:

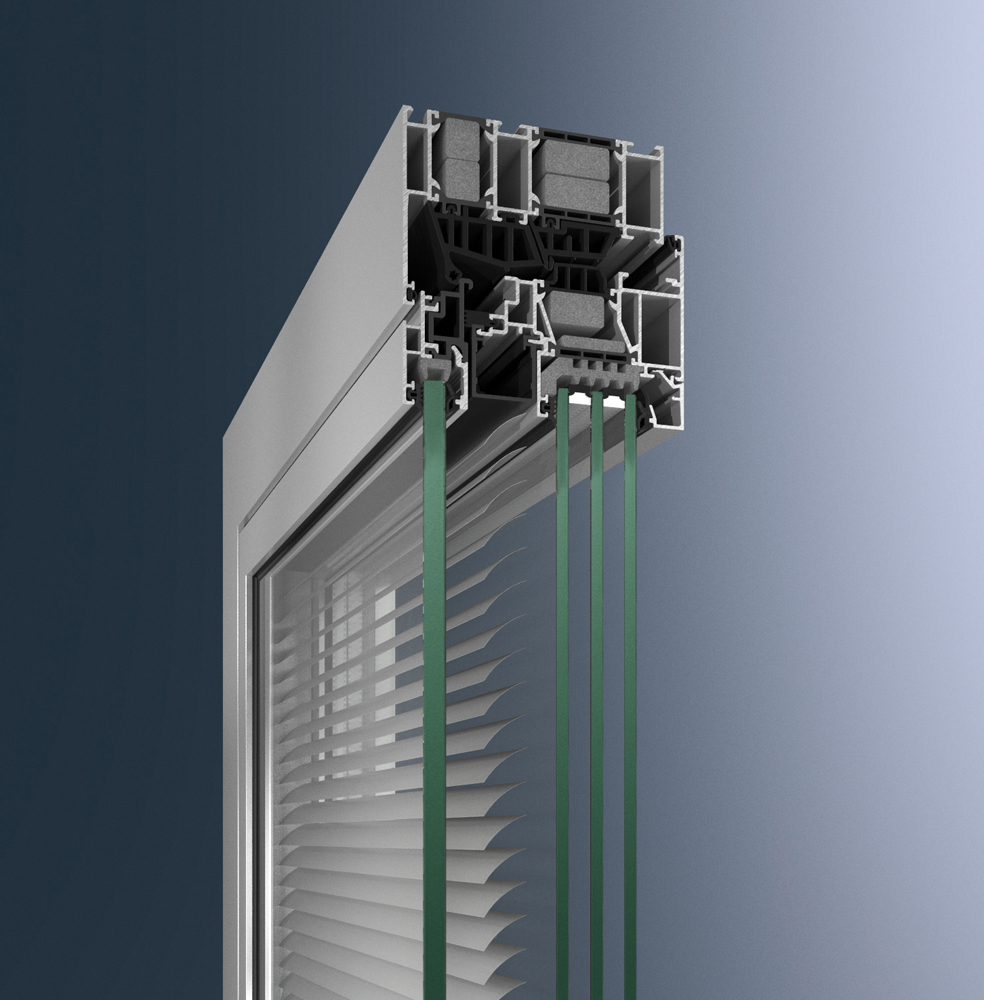

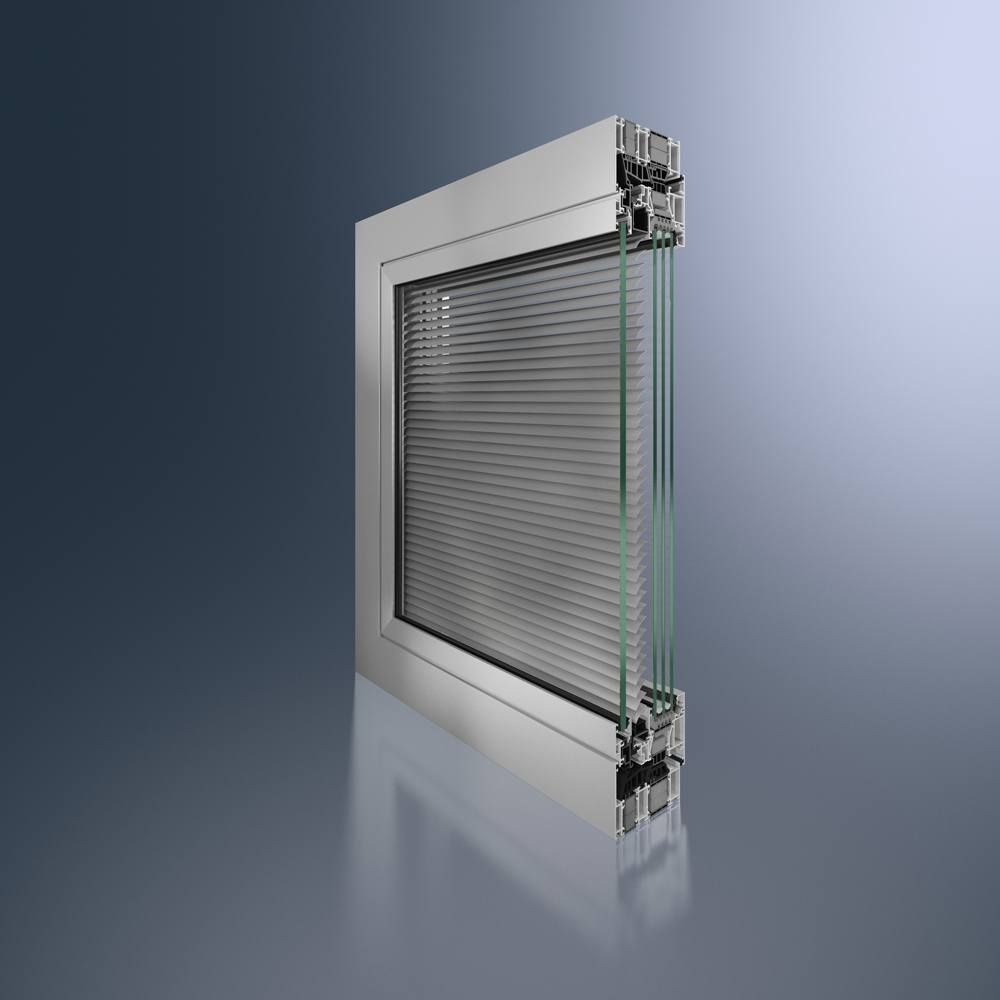

February 25th, 2014 (Shanghai, China) –In addition to satisfying demanding architectural requirements in terms of aesthetics and design, the Schüco AWS 120 CC.SI composite window also meets the highest requirements in terms of thermal insulation. The recently awarded certificate from the Passive House Institute (PHI) in Darmstadt is now also official proof of this. With the required glazing for a standard window measuring 1.23 x 1.48 m, the aluminium composite construction with a basic depth of 120 mm achieves a Uw value of 0.75 W/m2K. In addition to this passive house-certified level of energy efficiency, the composite window also features burglar resistance to RC3 and tested sound reduction values of up to 53 dB. Furthermore, the integrated Schüco CCB (Concealed Composite Blind) solar shading is the heart of the composite window. It is integrated in the window profile, thereby preventing thermal bridging and providing a good level of protection from the weather.

The Schüco CCB solar shading has been specially developed for use in the composite window. The 25 mm-wide aluminium louvre blades made of a special alloy can be raised and lowered as well as opened or closed when the Venetian blind is in any position using a 24 V electric motor. The motor and the Venetian blind components are specially designed for the increased temperatures in the space between the panes of the composite window. The composite Venetian blind provides anti-glare protection, solar shading and screening, as well as a view to the outside. One particular advantage is that the Venetian blind can be used in any weather, regardless of wind, ice or snow, due to its protected position. It is installed in the space between the external single glazing and the internal insulating glass in such a way that the top profile of the Venetian blind is concealed. This means that when the Venetian blind is raised, a minimal visible stack height is achieved in the area of visibility. Compared to composite windows made by other suppliers, this is unique worldwide and a key deciding factor for architects in particular. In addition, no light is able to penetrate at the sides when the Venetian blind is lowered as the Venetian blind is concealed in the rebate space between the panes of the composite vent. The CCB solar shading can be accurately positioned in the composite window - the dimensions are automatically derived from the dimensions of the composite window vent. Important for the installer - installation in the space between the panes of the composite window is secure, fast and does not require the use of any tools due to the special way in which the adapted top and cover profiles are integrated by means of clipping them in place, and due to the integrated plug-in contacts for the transfer of current.

Reader enquiries

Notes for editors

Complete package for window modernisation

The Schüco AWS 120 CC.SI composite window with its integrated CCB solar shading as a complete package is also ideal for the modernisation market. When combined with the Schüco modernisation outer frame, a time saving of up to 37% can be achieved during installation, as no further processing or time-consuming dismantling of the old outer frame is required, depending on the installation type. The composite window can also be fitted with the Schüco VentoTherm ventilation system. In conjunction with the mechatronic Schüco TipTronic fitting, natural ventilation without any need for user action can be combined with fan-assisted ventilation to provide hybrid ventilation, in order to fully exploit the energy-saving potential in buildings. For more product benefits and technical information, visit www.schueco.de/aws-120cc-si-en
